When should this product be used instead of other Wear Guard products?

Devcon wear compounds are selected based on the type of wear present in the application. For fine particle abrasion such as slurry or dust, Devcon Wear Guard Fine Load is typically used. For environments where both abrasion and mechanical impact are present, Devcon Wear Guard High Impact may be more suitable. For severe or extreme abrasion conditions, Devcon Megawear is typically used. For applications requiring faster return to service, Devcon Combo Wear FC is designed for rapid repairs.

How strong is Devcon Megawear?

The cured material is designed for use in environments exposed to severe abrasion. For full technical data and performance details, refer to the product's Technical Data Sheet.

What type of businesses use Devcon Megawear?

It is used by mining operations, mineral processing plants and industrial facilities where equipment is exposed to high levels of abrasion.

What is Devcon Megawear used for?

Devcon Megawear is used for protecting equipment exposed to severe abrasion, including pipelines, cyclones, chutes and processing equipment.

Where can I buy Devcon Megawear?

You can visit our distributors page to find your nearest supplier, or browse the range online at Blackwoods.

Add a Title
Text goes here
Add a Title
Text goes here
Add a Title
Text goes here
Add a Title
Text goes here
Add a Title
Text goes here
Add a Title
Text goes here
Add a Title
Text goes here
Text goes here

Text goes here

Text goes here

Text goes here

Text goes here

Text goes here

Text goes here

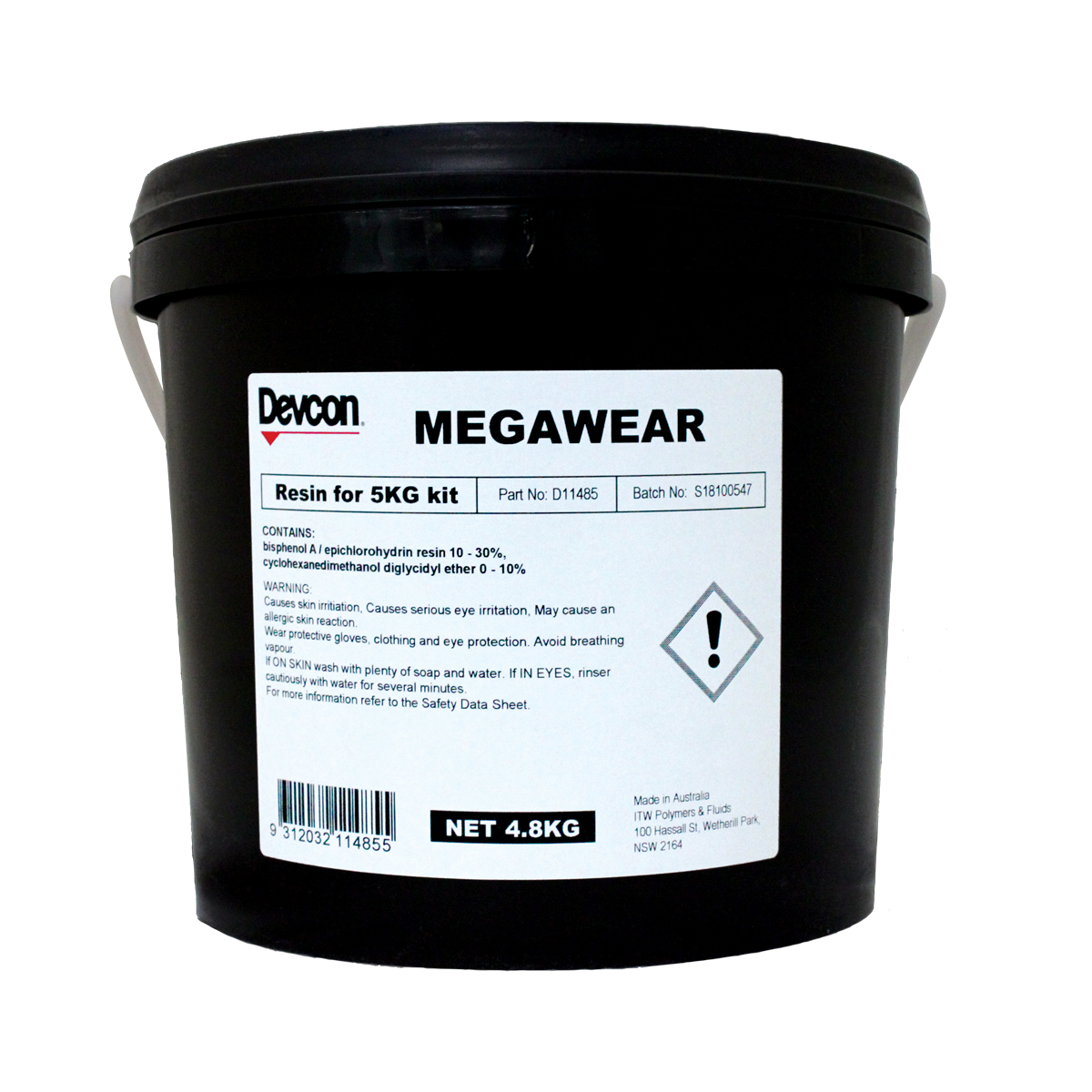

Devcon Megawear 5kg

Devcon Megawear is an epoxy protective compound designed for environments where equipment is exposed to severe abrasion. It forms part of the Devcon heavy abrasion repair range and is used to protect equipment surfaces in demanding industrial applications. In industrial systems, equipment such as pipelines, cyclones, chutes and material transfer points are exposed to high volumes of abrasive materials. In these environments, surface degradation can occur rapidly, requiring frequent maintenance. Megawear is formulated for use in these conditions, where abrasion levels exceed those typically managed by general protective compounds. It is used to protect worn surfaces and maintain equipment function in areas subject to continuous material flow. For applications where abrasion is less severe or where impact loading is present, other Devcon Wear Guard products may be more suitable depending on the wear conditions. The material reaches functional cure in approximately 3 hours, with full cure achieved in around 16 hours. It is suitable for use in environments with service temperatures up to approximately 120 °C (dry).

Overview

Additional Information

Designed for severe and continuous abrasion environments

Devcon Megawear is formulated for applications where equipment is exposed to aggressive and ongoing wear. It is used in areas where wear rates are high and continuous.

Suitable for high-wear process equipment

The product is used on equipment such as pipelines, cyclones, chutes and transfer points where abrasive materials are conveyed at high volume.

Supports protection of heavily worn surfaces

The compound is used to protect surfaces that have experienced significant wear, helping maintain equipment geometry and function.

Micro-alumina reinforced formulation

Megawear is formulated with micro-alumina ceramic beads, supporting its use in environments where abrasion resistance is required.

Mechanical performance suited to high wear conditions

The material is designed for use in environments where equipment is exposed to aggressive abrasion from bulk materials and slurry systems.

Used in mining and mineral processing environments

Megawear is commonly used in mining, mineral processing and industrial operations where equipment is exposed to high wear conditions.

Suitable for protecting worn surfaces during application

The compound can be applied and shaped directly onto worn areas, allowing controlled protection of equipment surfaces during application.
Applications
Devcon Megawear is used in industrial environments where equipment is exposed to severe abrasion from bulk materials and slurry systems.
• Protecting pipelines and slurry lines
• Protecting cyclones and separators
• Protecting chutes and transfer points
• Protecting processing equipment exposed to heavy wear
• Maintenance of high-wear systems in mining and processing operations
This guide provides an overview of how Devcon Megawear can be used for protecting equipment exposed to severe abrasion. As part of the Devcon heavy abrasion repair range, it is designed for protecting equipment surfaces in demanding industrial environments. For project-specific preparation methods, mixing instructions and curing guidance, always refer to the technical data sheet before use.

Step 1: Clean the area

Remove dirt, grease, loose material and contaminants from the surface before application. Proper cleaning supports adhesion.

Step 2: Prepare the surface

Prepare the substrate using grinding or abrasive blasting to create a suitable surface profile. Remove dust and debris before applying the material.

Step 3: Mix the material thoroughly

Combine the components and mix until a uniform colour and consistency is achieved. Proper mixing ensures correct curing.

Step 4: Apply the compound

Apply the mixed material directly to the prepared area, pressing it into the surface and building up the required thickness.

Step 5: Shape the coating

Shape the material during application to match the equipment profile and support material flow.

Step 6: Allow the material to cure

Allow the material to cure before returning equipment to service. The product reaches functional cure in approximately 3 hours, with full cure in around 16 hours depending on conditions.
When should this product be used instead of other Wear Guard products?
Devcon wear compounds are selected based on the type of wear present in the application. For fine particle abrasion such as slurry or dust, Devcon Wear Guard Fine Load is typically used. For environments where both abrasion and mechanical impact are present, Devcon Wear Guard High Impact may be more suitable. For severe or extreme abrasion conditions, Devcon Megawear is typically used. For applications requiring faster return to service, Devcon Combo Wear FC is designed for rapid repairs.
How strong is Devcon Megawear?
The cured material is designed for use in environments exposed to severe abrasion. For full technical data and performance details, refer to the product's Technical Data Sheet.
What type of businesses use Devcon Megawear?
It is used by mining operations, mineral processing plants and industrial facilities where equipment is exposed to high levels of abrasion.
What is Devcon Megawear used for?
Devcon Megawear is used for protecting equipment exposed to severe abrasion, including pipelines, cyclones, chutes and processing equipment.
Where can I buy Devcon Megawear?
You can visit our distributors page to find your nearest supplier, or browse the range online at Blackwoods.

Available Sizes

Product Specifications

SKU

D11485

Barcode

Loading Product..

VIEW

SDS

TDS
